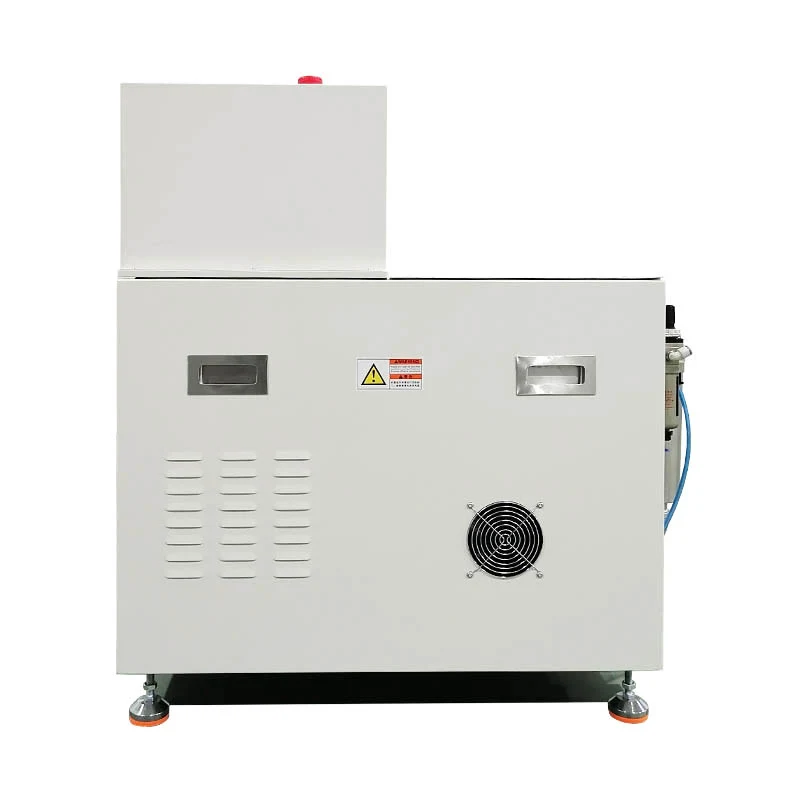

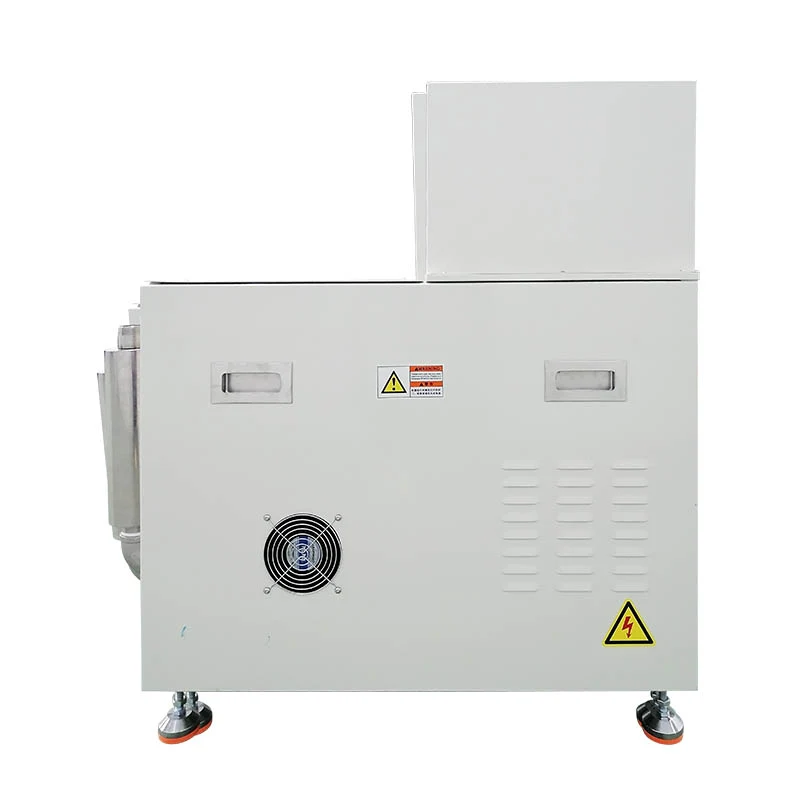

Semi Automatic HTCC Wall mounted Machine

YISENRONG Semi Automatic HTCC Wall mounted Machine is vacuum - treated by transmitting through a fan and a vacuum solenoid valve to the wall - mounted chamber.

Equipment Dimensions: 550mmW×1020mmD×950mmH

Safety Precautions for Mechanical Equipment Operation:‌

A. Properly wear protective equipment.‌

‌B. Conduct equipment safety inspections.‌

‌C. Follow operating procedures and risk mitigation measures:‌

Do not touch moving parts (e.g., cutters, pulley wheels) with hands.

Do not adjust, measure, or clean debris by hand during operation.

For multi-person collaborative operations, clarify division of responsibilities to avoid accidental activation of control devices.

D. Equipment maintenance and emergency preparedness:‌

Perform regular maintenance and upkeep.

Clean equipment after use; inspect worn parts (e.g., cutters, bearings) and replace them promptly.

Regularly test safety devices (e.g., protective covers, emergency stop switches); unauthorized removal is prohibited.

E. Emergency response:‌

In case of sudden malfunction or accident, immediately cut off power and report the incident; do not attempt to repair equipment while it is running.

Delivery period: 90 days.

Core Strengths

Save workshop floor space: The wall-mounted (or vertical wall-mounted fixed) design reduces floor Footprint compared to traditional desktop or horizontal equipment, making it highly suitable for clean rooms or HTCC ceramic tile/ceramic substrate processing workshops with tight space.

Ergonomic design: The vertical or inclined wall-mounted viewing Angle enables operators to align, clamp and retrieve materials in a comfortable posture, avoiding prolonged head-down operations.

The operation area is clear: The vertical operation surface is less likely to accumulate dust and particles. A waste/chip collection trough is integrated at the bottom (such as for punching and edge cutting processes), maintaining a high level of cleanliness in the process environment.

FAQ

Is the operation difficult? What are the requirements for personnel skills?

Configure a human-machine interface (HMI/touch screen), pre-store various product process parameters (such as printing pressure, punching speed, alignment threshold, etc.). The operators only need to take and place the raw ceramic pieces and press the foot pedal/double button to start. After 1-2 days of basic training, they can be proficiently on the job.

How to prevent the raw ceramic pieces from deforming or being electrostatically adsorbed during the processing?

The countertop adopts a multi-hole and multi-zone independently controlled micro-pore vacuum adsorption countertop, as well as an integrated ion fan/static electricity elimination rod inside. During the process of taking, placing and processing, it continuously eliminates the static electricity on the surface of the ceramic tiles, preventing dust from adhering or causing the ceramic tiles to stick and break

What standards are used for packaging? Can it meet the requirements for international sea or air transportation?

It is packed in fumigation-free wooden cases that meet international export standards. The inner layer is anti-static air bubble film, and some parts are fully wrapped with pearl cotton for protection. The outer layer uses reinforced wooden boxes, and there is a anti-skid pallet slot at the bottom to facilitate mechanical loading and unloading.
