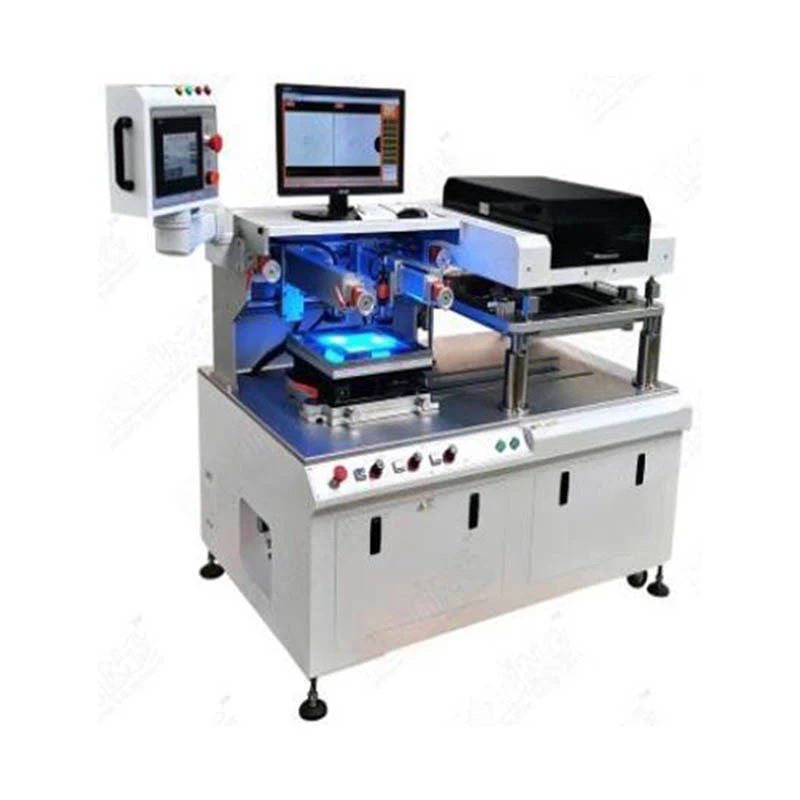

In cutting-edge fields such as 5G communication, automotive electronics and aerospace, the application of low-temperature co-fired ceramics (LTCC) technology is becoming increasingly crucial. The core printing process of LTCC has extremely high requirements for precision and consistency. The automatic LTCC printer machine launched by YSR is precisely designed to meet this precision manufacturing demand, dedicated to providing customers with stable and efficient printing solutions.
The trend of high-density interconnection and miniaturization poses more stringent challenges to LTCC printing: thinner line widths and higher alignment accuracy requirements. Traditional equipment is difficult to ensure the stability of yield in large-scale production. The YSR automatic LTCC printer machine transforms the printing process into a precisely controllable standardized procedure through automation and intelligence technologies, effectively addressing these challenges.
LTCC Machine Advantages
| Advantage | Description |
|---|---|
| Performance | Excellent electrical/mechanical properties, stable high-frequency & temperature performance, wide range of dielectric constants, and thermal expansion coefficient similar to silicon. |
| Reliability | High system stability and strong reliability. |
| 3D Fabrication | Capable of creating 3D microstructures (e.g., cavities, channels). |
| Integration | High level of integration for sensors, actuators, and microfluidic systems. |
| Durability | Excellent high-voltage and vacuum compatibility. |
| Economics | Low-cost manufacturing, short production cycles, and high profitability. |
This device integrates two core systems to ensure outstanding performance:
High-precision CCD vision positioning system: Automatically identifies and precisely positions, effectively compensates for material deformation, and ensures the registration accuracy of multi-layer printing.
The fully digital printing control unit: Key parameters such as the Angle, pressure and speed of the scraper can all be digitally set and stably controlled to ensure uniform thickness of the slurry and consistent graphics.
The YSR fully automatic LTCC printer machine features excellent flexibility and is suitable for a variety of application scenarios
R&d and small-batch production: Flexible parameter adjustment, supporting rapid verification of new materials and new processes.
Large-scale manufacturing: Stable and efficient printing capabilities to meet the mass production demands of components such as filters and sensors.
Complex structure applications: Precise platform control capabilities, capable of handling special printing tasks such as irregular substrates.
Choosing YSR means choosing a reliable production partner. We not only provide high-performance automatic LTCC printer machines, but also provide the whole process services from process optimization to technical support to ensure the continuous and stable operation of the equipment, help customers improve the core competitiveness of products, and grasp the market opportunities in the field of precision electronic manufacturing.
