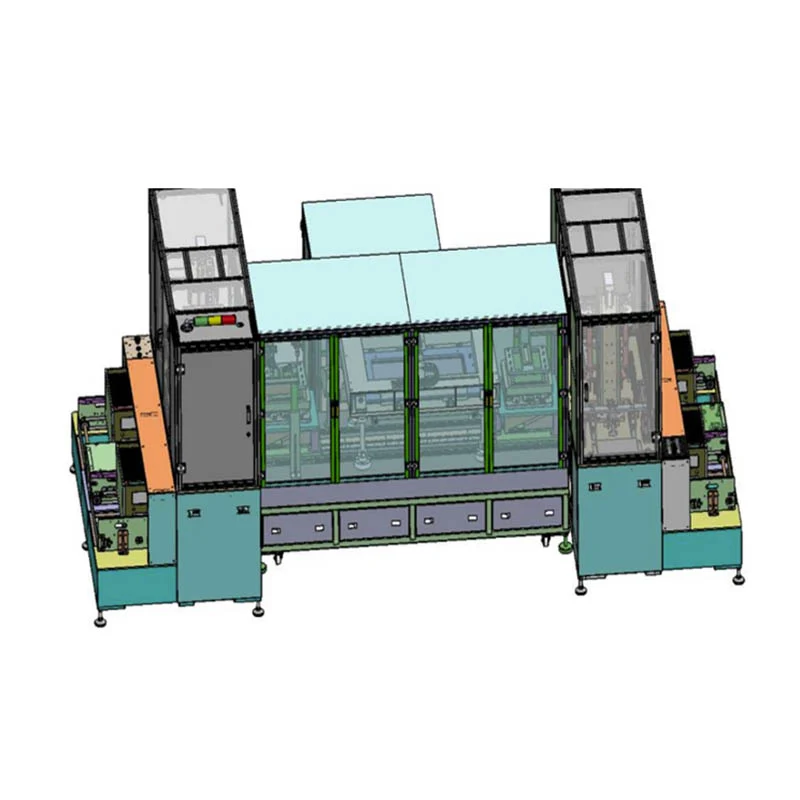

This is a fully - automatic printing equipment used for the printing operation of HTCC green ceramic sheets. It can realize the automatic loading and unloading functions of green ceramic sheet printing, thus achieving fully - automated printing operations. The equipment uses a CCD visual system to complete precise alignment, and a special printing system to achieve high - quality printing. The printing system can adjust the scraper angle, printing pressure, printing off - screen distance, and printing speed to ensure high - quality, high - efficiency, and high - precision printing.
Applicable metal frame sizes: 8 - inch line, 6 - inch line, 5 - inch line
Applicable film - belt size: 246±0.5mm×210mm±5mm
Applicable film - belt thickness: 0 - 2mm
Off - screen distance adjustment range: 0 - 15mm
Printing/slurry - scraping speed: 1 - 350mm/s
Applicable screen size: 600×600×30mm
Maximum lifting stroke of the lifting platform: 15mm
A. Properly wear protective equipment.
B. Conduct equipment safety inspections.
C. Follow operating procedures and risk mitigation measures:
Do not touch moving parts (e.g., cutters, pulley wheels) with hands.
Do not adjust, measure, or clean debris by hand during operation.
For multi-person collaborative operations, clarify division of responsibilities to avoid accidental activation of control devices.
D. Equipment maintenance and emergency preparedness:
Perform regular maintenance and upkeep.
Clean equipment after use; inspect worn parts (e.g., cutters, bearings) and replace them promptly.
Regularly test safety devices (e.g., protective covers, emergency stop switches); unauthorized removal is prohibited.
E. Emergency response:
In case of sudden malfunction or accident, immediately cut off power and report the incident; do not attempt to repair equipment while it is running.
Delivery period: 90 days.
What is RES printing technology?
Unlike traditional SLA/DLP/LCD, RES (Rapid Exponential Solidification) is a high-strength rapid curing molding technology. Compared with traditional stereolithography technology, RES frame printers not only ensure high precision but also significantly enhance the forming efficiency and the bonding strength between the cured layers, enabling a better balance between printing speed and the mechanical strength of industrial-grade components.
Why choose the frame structure?
It offers extremely high body rigidity and stability, effectively suppressing mechanical vibration during high-speed printing, ensuring the repeat positioning accuracy when the Z-axis rises and falls, and is particularly suitable for long-term, high-intensity industrial-grade continuous production.
What technical support and training will be provided after purchasing the equipment?
Installation guidance： Provide detailed video tutorials， operation manuals， and remote/on-site installation guidance from engineers.
Technical training： Include software slicing， print parameter optimization， equipment maintenance， and troubleshooting of common faults.
Quality guarantee commitment： Core components enjoy special quality assurance， and the after-sales team responds quickly within 24 hours.
Which transportation methods do you support？ Can we use the logistics company designated by us for delivery?
We offer flexible logistics cooperation solutions: Domestic transportation: supporting direct dedicated vehicle service, scheduled Dakar logistics and third-party heavy cargo express delivery.
Export： Support various trade terms such as FOB， CIF， DDP， DDU， covering ocean container (FCL) shipping， less-than-truckload (LCL) shipping， air transportation， and international land transportation.
Designated logistics: fully support customers to pick up or by your designated Forwarder to the factory inspection and delivery of goods.
