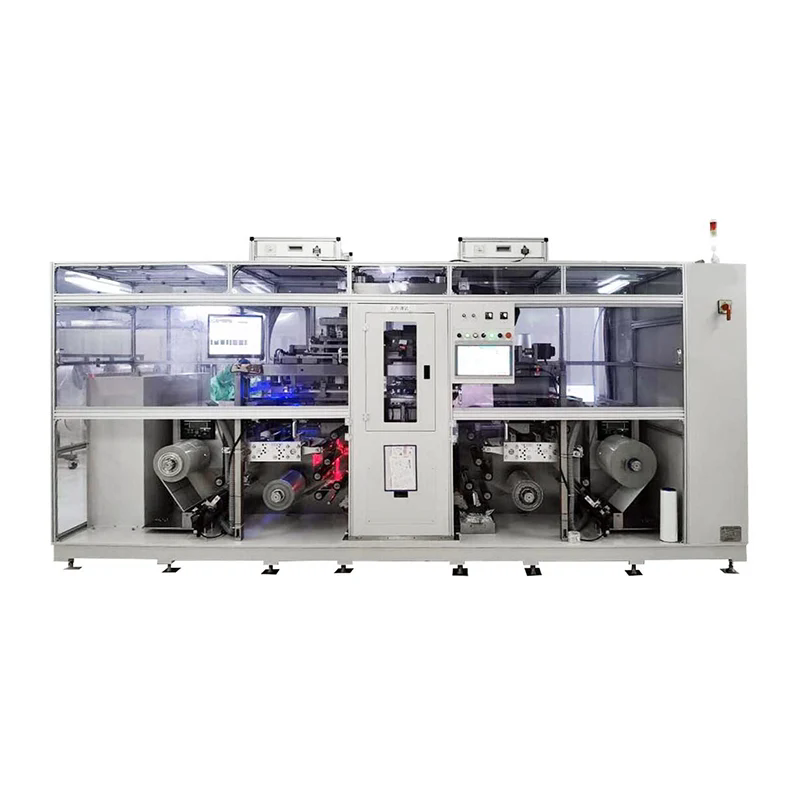

In the field of modern precision electronic manufacturing, the production of components such as multilayer ceramic capacitors (MLCC) and high temperature co-fired ceramics (HTCC) highly depends on special equipment with high precision and efficiency.As a core equipment manufacturer in the deep farming industry, YSR not only provides mature solutions such as MLCC machines and HTCC machines covering a variety of processes, but also continues to focus on the iteration of core technologies.We have introduced a new generation of automatic MLCC stacking machine, aiming to provide a stable, efficient and intelligent production engine for global electronic component manufacturers.
With the rapid development of industries such as 5G and new energy vehicles, the market demand for passive components like MLCC has soared, putting forward unprecedented requirements for product consistency. The YSR automatic MLCC stacking machine, through high automation and intelligence, transforms the laminating process from an operation relying on manual experience to a standardized industrial process.
The core value of the device lies in the systematic design:
Precise and stable mechanical platform: The equipment frame is welded with high-quality steel profiles to ensure high speed operation and ultra-high stability in the process of precision pressure, which is the fundamental prerequisite for long-term high-precision alignment.
Automatic intelligent process: from automatic loading and positioning of ceramic film rolls, to high-precision manipulator for film picking, alignment and stacking, and finally laminating and taking out, the whole process is fully automated, ensuring a high degree of consistency of products within and between batches.
Visual operation and maintenance: The key working areas are enclosed with transparent materials, making the internal operations clearly visible and facilitating status monitoring, teaching and training, and daily maintenance.
Below you can find its usage conditions
| Parameter | Specification |
|---|---|
| Compressed Air Pressure | 0.5 - 0.7 MPa |
| Compressed Air Flow Rate | 200 L/min |
| Power Supply | AC 380V ±10%, 50 Hz |
| Maximum Power | 30 kW |
| Operating Temperature | 20 - 30 °C |
| Operating Humidity | 60 ± 10% |
For MLCC manufacturers, the introduction of YSR automatic MLCC stacking machine means:
Production efficiency jump: automatic 24 hours continuous operation, significantly improve the unit capacity.
Product quality leap: Micron-level high-precision alignment and constant bonding process directly enhance the interlayer alignment accuracy and electrical performance consistency of capacitors.
Production data is traceable: The intelligent control system records key process parameters, providing a data foundation for production optimization and problem traceability.
In an era when electronic components are increasingly miniaturized and high-performance, YSR is committed to becoming a reliable provider of "precision manufacturing engines" for global customers. Choosing the YSR automatic MLCC stakcing machine is to select a solid and reliable foundation for production capacity and quality competitiveness.
