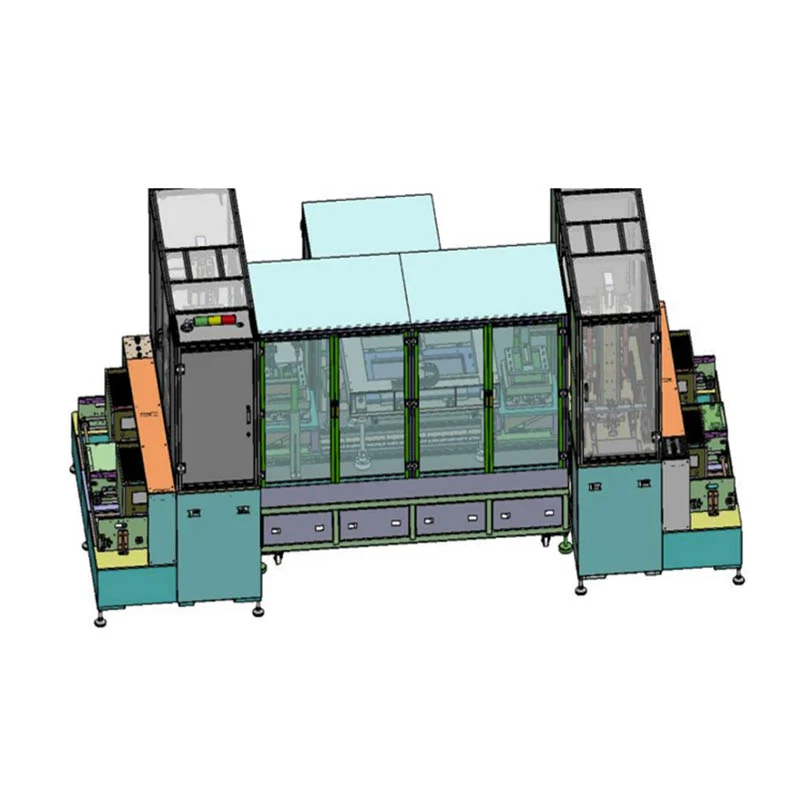

This is a fully - automatic printing equipment used for the printing operation of HTCC green ceramic sheets. It can realize the automatic loading and unloading functions of green ceramic sheet printing, thus achieving fully - automated printing operations. The equipment uses a CCD visual system to complete precise alignment, and a special printing system to achieve high - quality printing. The printing system can adjust the scraper angle, printing pressure, printing off - screen distance, and printing speed to ensure high - quality, high - efficiency, and high - precision printing.
● Applicable metal frame sizes: 8 - inch line, 6 - inch line, 5 - inch line
● Applicable film - belt size: 246±0.5mm×210mm±5mm
● Applicable film - belt thickness: 0 - 2mm
● Off - screen distance adjustment range: 0 - 15mm
● Printing/slurry - scraping speed: 1 - 350mm/s
● Applicable screen size: 600×600×30mm
● Maximum lifting stroke of the lifting platform: 15mm
A. Properly wear protective equipment.
B. Conduct equipment safety inspections.
C. Follow operating procedures and risk mitigation measures:
Do not touch moving parts (e.g., cutters, pulley wheels) with hands.
Do not adjust, measure, or clean debris by hand during operation.
For multi-person collaborative operations, clarify division of responsibilities to avoid accidental activation of control devices.
D. Equipment maintenance and emergency preparedness:
Perform regular maintenance and upkeep.
Clean equipment after use; inspect worn parts (e.g., cutters, bearings) and replace them promptly.
Regularly test safety devices (e.g., protective covers, emergency stop switches); unauthorized removal is prohibited.
E. Emergency response:
In case of sudden malfunction or accident, immediately cut off power and report the incident; do not attempt to repair equipment while it is running.
Delivery period: 90 days.
