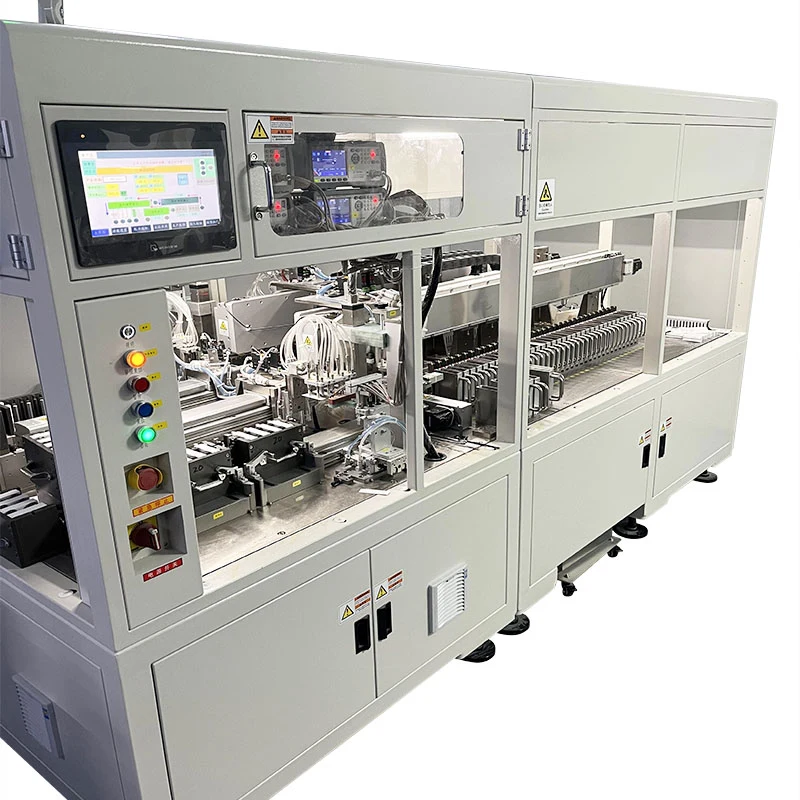

YISENRONG Automatic MCH Resistance Tester Machine transports products from the silo feeding mechanism to the resistance - testing mechanism. After testing the resistance, the product is sprayed with a resistance code, and then the resistance is precisely sorted into grades with 0.5 ohm as the only unit. It replaces manual inspection, greatly improves production efficiency, accurately classifies the resistance, and ensures the consistency of process control.
The equipment can be compatible with various width - size specifications.
Equipment Dimensions: Approximately 1900mmW×1200mmD×1750mmH (including the alarm light)
A. Properly wear protective equipment.
B. Conduct equipment safety inspections.
C. Follow operating procedures and risk mitigation measures:
Do not touch moving parts (e.g., cutters, pulley wheels) with hands.
Do not adjust, measure, or clean debris by hand during operation.
For multi-person collaborative operations, clarify division of responsibilities to avoid accidental activation of control devices.
D. Equipment maintenance and emergency preparedness:
Perform regular maintenance and upkeep.
Clean equipment after use; inspect worn parts (e.g., cutters, bearings) and replace them promptly.
Regularly test safety devices (e.g., protective covers, emergency stop switches); unauthorized removal is prohibited.
E. Emergency response:
In case of sudden malfunction or accident, immediately cut off power and report the incident; do not attempt to repair equipment while it is running.
Delivery period: 90 days.
| Dimension | Ordinary / Traditional Resistance Testing Equipment | Our Patented Automatic MCH Resistance Tester |
|---|---|---|
| Measurement Accuracy & Stability | Susceptible to poor contact or environmental temperature drift, resulting in significant fluctuations | Patented four-terminal Kelvin test + dynamic temperature drift compensation ensures an accuracy of up to ±0.05% |
| Anti-Interference Performance | Prone to jump counts and misjudgments in industrial environments with strong electromagnetic interference | Patented anti-interference shielding and filtering circuit ensures stable data without noise |
| Sorting Efficiency & Automation | Manual placement or simple sorting is slow, prone to fatigue and errors | Fully automatic high-speed feeding, testing, and multi-position precise sorting; efficiency increased by 3–5 times |
| Data Traceability & MES Connection | Data is in an independent island, lacking long-term statistical traceability capabilities | Supports real-time storage of all data, seamless connection with MES system, and barcode error prevention |
