Automatic LTCC Stacking Machine

The laminating machine is used to cut the blank film of the rolled ceramic film and the printed ceramic film into square pieces, and then grab and align them with a mechanical arm. After that, they are laminated and pressurized according to the set program to form a block with the internal structure of MCC.

The working principle is to install the blank ceramic film roll on the right roll out position of the laminating machine; After printing, the ceramic film roll is installed at the left roll out position of the laminating machine; Then, according to the process requirements, the program is set, and the peeling robot arm grabs different films. After automatic alignment, the films are stacked and pressurized. Finally, the robot arm takes out the stacked blocks and puts them into the receiving tray.

Overall dimensions of the machine: Host 4350mm (L) x1600mm (w) x2500mm (H).

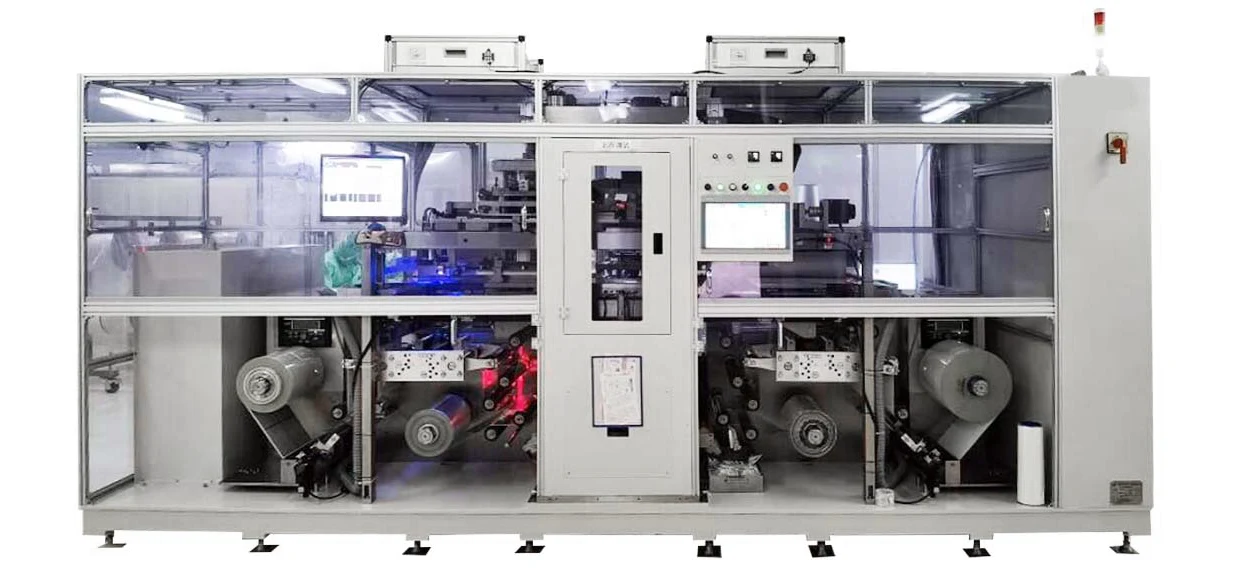

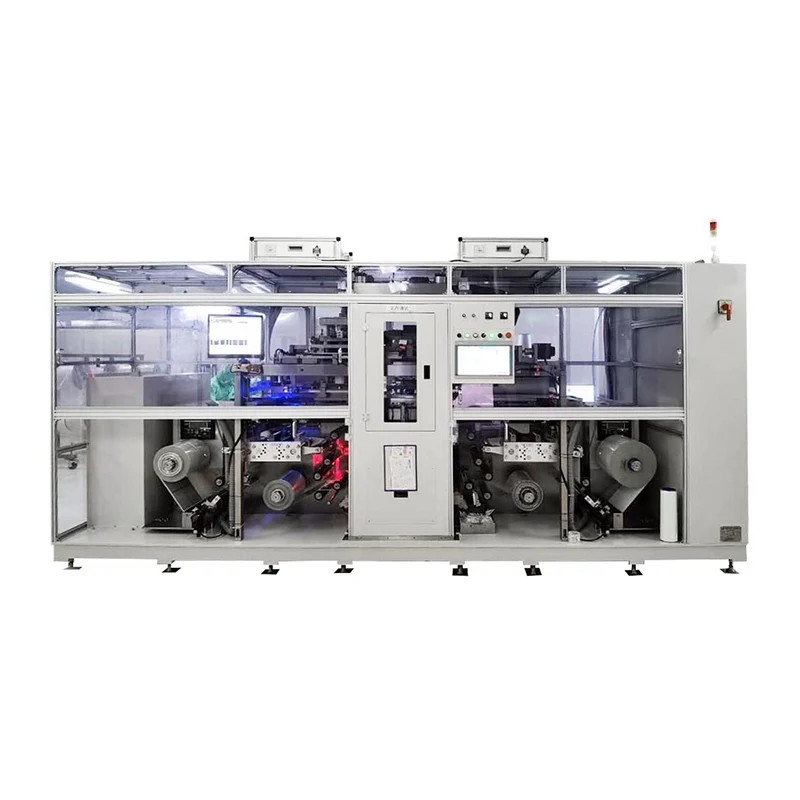

YISENRONG Automatic LTCC Stacking Machine consists of a rack, an electrode side roll transfer mechanism, an electrode side roll transfer mechanism, an electrode side peeling worktable, a cover side peeling worktable, a film handling manipulator and alignment mechanism, a pressure mechanism, a material receiving manipulator, and an electrical system. The bottom of the rack is welded with steel sections, ensuring the stability and accuracy of the equipment. Other areas are designed with profile frames and transparent PVC materials for closure, making the interior visible and easy to operate.

Usage conditions

Compressed air pressure 0.5-0.7MPa

Compressed air flow rate 200L/Min

Power supply AC 380V+10% 50Hz

Maximum power of 30 kW

Temperature 20-30 ℃

Humidity 60 ± 10%

Safety Precautions for Mechanical Equipment Operation:‌

A. Properly wear protective equipment.‌

‌B. Conduct equipment safety inspections.‌

‌C. Follow operating procedures and risk mitigation measures:‌

Do not touch moving parts (e.g., cutters, pulley wheels) with hands.

Do not adjust, measure, or clean debris by hand during operation.

For multi-person collaborative operations, clarify division of responsibilities to avoid accidental activation of control devices.

D. Equipment maintenance and emergency preparedness:‌

Perform regular maintenance and upkeep.

Clean equipment after use; inspect worn parts (e.g., cutters, bearings) and replace them promptly.

Regularly test safety devices (e.g., protective covers, emergency stop switches); unauthorized removal is prohibited.

E. Emergency response:‌

In case of sudden malfunction or accident, immediately cut off power and report the incident; do not attempt to repair equipment while it is running.

Delivery period: 90 days.
