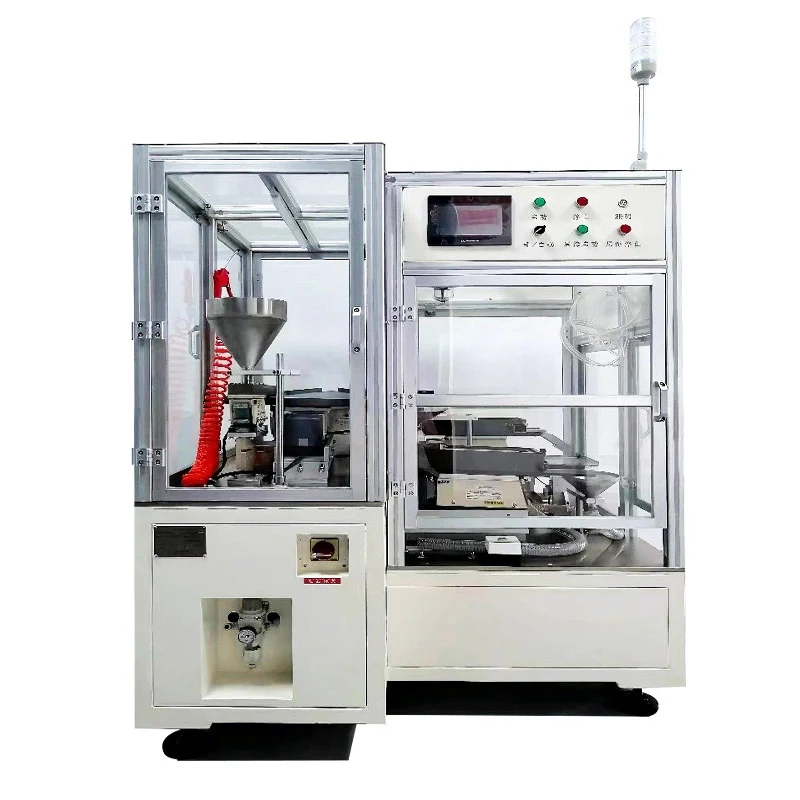

YISENRONG Automatic RES Chamfered Ball Screening Machine is mainly used for screening zirconium balls and products after chamfering of MLCC chip - type capacitors. Screening requirements: First, classify chamfered balls (1. Collect those with a diameter ≥ the specified diameter uniformly; 2. Collect those with a diameter ＜ the specified diameter uniformly). Second, screen product adhered chips, product long strips, and product fragments.
The screening function is realized by the feeding mechanism. The zirconium balls are first screened by the first triangular plate, and the zirconium balls are classified by size by the first strip - shaped sieve. Then the products are transferred to the second triangular plate for secondary precision screening of zirconium balls. After precision screening, the products are transferred to the product strip - shaped sieve for the first - stage screening of adhered chips and long strips. After that, the products fall to the next layer for the second - stage screening of adhered chips, then fall to the third layer for the screening of fragments, and finally, the products are transferred to the qualified product collection.
Maximum equipment dimensions: Approximately 1110mmW×1150mmD×1800mmH (including the alarm light)
Applicable screening sizes: 01005, 0201, 0402, 0603
Equipment body weight: Approximately 300Kg
Equipment appearance: Beige high - gloss
Product unqualified rate (fragments, adhered chips, balls, broken balls): Within 0.2%, chamfered ball qualified rate (excluding products, broken balls, broken products): 100% OK
A. Properly wear protective equipment.
B. Conduct equipment safety inspections.
C. Follow operating procedures and risk mitigation measures:
Do not touch moving parts (e.g., cutters, pulley wheels) with hands.
Do not adjust, measure, or clean debris by hand during operation.
For multi-person collaborative operations, clarify division of responsibilities to avoid accidental activation of control devices.
D. Equipment maintenance and emergency preparedness:
Perform regular maintenance and upkeep.
Clean equipment after use; inspect worn parts (e.g., cutters, bearings) and replace them promptly.
Regularly test safety devices (e.g., protective covers, emergency stop switches); unauthorized removal is prohibited.
E. Emergency response:
In case of sudden malfunction or accident, immediately cut off power and report the incident; do not attempt to repair equipment while it is running.
Delivery period: 90 days.
The Automatic RES Chamfered Ball Screening Machine has undergone factory inspection and professional packaging by our industry, and has been officially dispatched. It is equipped with an overall protective film and fixed on a wooden pallet to ensure safe transportation during long-distance travel. Before delivery, the equipment has passed all factory commissioning and quality testing, and the performance indicators meet the requirements of the contract and industry standards. We will continue to follow up on the logistics progress and on-site installation and commissioning services to ensure timely delivery and smooth production start. During production, if any problems occur, you can contact us at any time. We have a complete after-sales service, with customer service personnel available 24 hours a day for connection.
