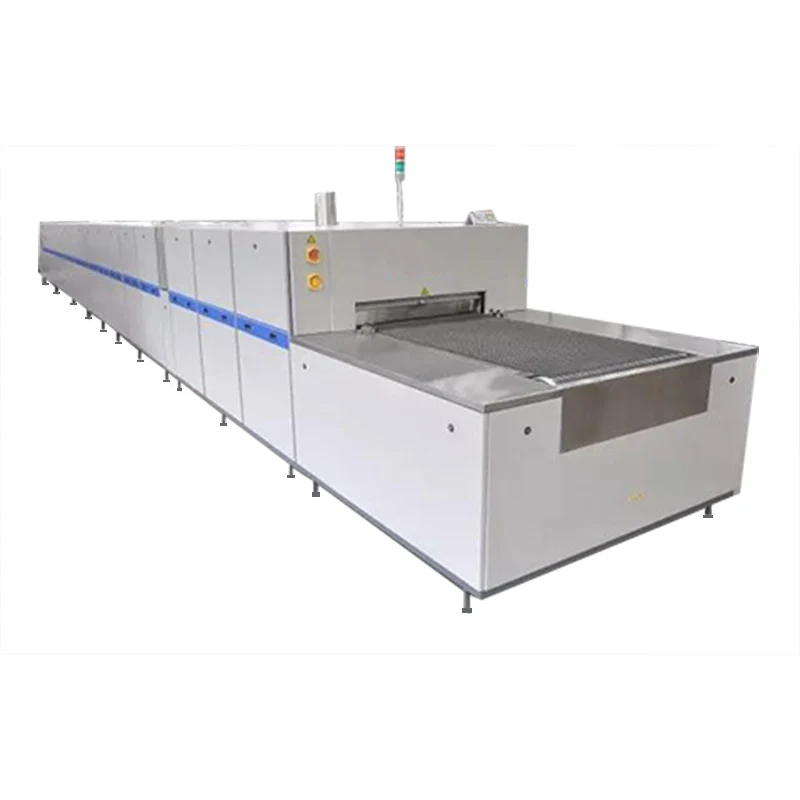

Automatic Drying And Sintering Integrated Furnace

As a professional manufacturer, YISENRONG offers the Automatic Drying And Sintering Integrated Furnace, which can effectively reduce the transfer steps of materials between different equipment, enhance production efficiency, and ensure product quality. It is widely applied in fields such as new materials, powder metallurgy, electronic ceramics, hard alloys, and new energy batteries, and is a thermal treatment equipment capable of completing the two key processes of material drying (degreasing) and high-temperature sintering continuously or intermittently.

Indicator parameters

Rated temperature: 850 ℃; Maximum temperature: 1050 ℃

Effective height: 140mm

Mesh belt width: 700mm

Furnace structure: adopting a large furnace chamber and a masonry structure made of ultra-light insulation materials

Maximum load: 50Kg/㎡

Speed range: 70-400mm/min, typical belt speed: 170-250mm/min; Variable frequency stepless speed regulation

Heating element: Infrared tube FEC heater for heating, upper heating in the drying area, and upper and lower heating in the sintering area

Sintering atmosphere: dry and clean compressed air

Air path composition: 11 intake channels, each with adjustable flow rate

Cooling method: a combination of insulation cooling, air cooling, and water cooling is used for cooling, and the water temperature of the cooling water jacket is checked at 1 point

Temperature control stability: ± 1 ℃

Safety Precautions for Mechanical Equipment Operation:‌

A. Properly wear protective equipment.‌

‌B. Conduct equipment safety inspections.‌

‌C. Follow operating procedures and risk mitigation measures:‌

Do not touch moving parts (e.g., cutters, pulley wheels) with hands.

Do not adjust, measure, or clean debris by hand during operation.

For multi-person collaborative operations, clarify division of responsibilities to avoid accidental activation of control devices.

D. Equipment maintenance and emergency preparedness:‌

Perform regular maintenance and upkeep.

Clean equipment after use; inspect worn parts (e.g., cutters, bearings) and replace them promptly.

Regularly test safety devices (e.g., protective covers, emergency stop switches); unauthorized removal is prohibited.

E. Emergency response:‌

In case of sudden malfunction or accident, immediately cut off power and report the incident; do not attempt to repair equipment while it is running.

Delivery period: 90 days.

1) Integrated Design

Drying zone and sintering zone are integrated.

Complete drying and sintering process.

Reduces manual intervention between processes and handling losses.

2) Precise Temperature Control

Multi-zone temperature control independently with temperature uniformity.

Programmable heating curves,support multi-stage process settings.

3) Stable Conveying

Precision conveying,ensure smooth operation.

Conveying speed is adjustable,adapt various products and processes.

Suitable for continuous mass production.

4) Wide Compatibility

Compatible with various sizes and shapes of ceramic components.

Conveying width and furnace chamber height can be adjusted according to product requirements.

5) Energy Saving & Safety

High-efficiency thermal insulation material,minimizes heat loss.

Multiple safety protections with automatic over-temperature alarm.Equipped with waste gas discharge system,meet environmental protection requirements.

Our Certification

The equipment we developed has integrated the drying and sintering processes, enhanced the level of automation and precise control capabilities, and has become a key factor in improving the quality and production efficiency of products such as hard alloys, advanced ceramics, and powder metallurgy. It incorporates advanced temperature control algorithms, multi-zone independent temperature field management, and a certification system in line with international standards, jointly ensuring the accuracy, stability, and safety of the process.
